Easy Installation of Legalett ThermalWall PH Panels for Passive House & NZEB – Boost Wall Insulation to R-52+ in One Step

ThermalWall PH Panel Installation for Passive House & NZEB Projects

See how easy it is to install the Legalett ThermalWall PH Panel system for Passive House or Net Zero Energy Building (NZEB) wall insulation. In one simple and cost effective operation the wall insulation performance of practically any building, be that new build or renovation, is boosted to R-52 or more…



Steps for Installing ThermalWall PH Super Insulating Wall Panels

The following photographs provide a pictorial description of the installation of ThermalWall PH Wall Insulation for a Passive House designed commercial building project.

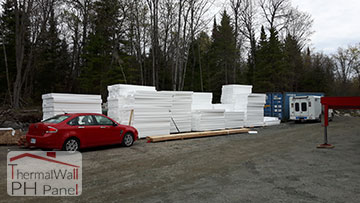

ThermalWall PH Panels delivered to site and ready for install

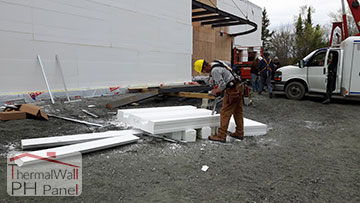

Panels are easily cut with a chainsaw

Apply spray foam to the vertical & horizontal T & G joints where the ThermalWall PH panel is to be installed

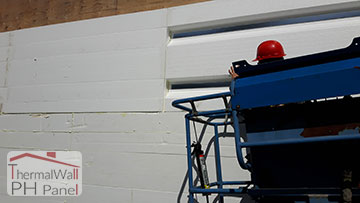

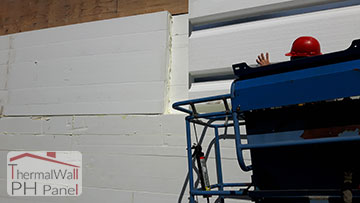

Place the ThermalWall PH Panel in position

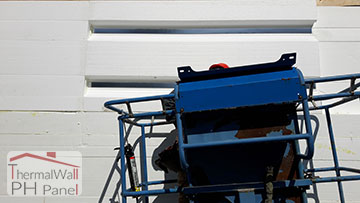

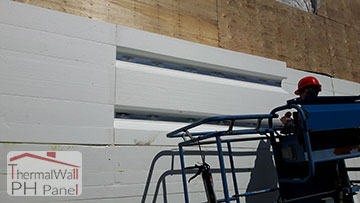

Set the ThermalWall PH Panel into the foam adhesive

ThermalWall PH Panel is now ready for screws

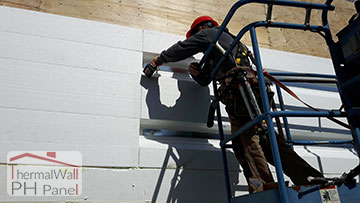

Screw the 4 corners first, to position the ThermalWall PH panel

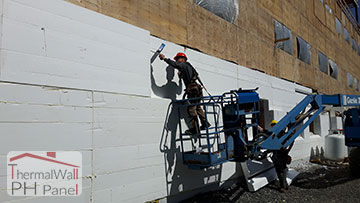

Install the rest of the screws

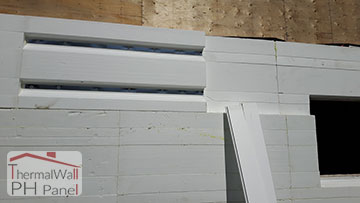

ThermalWall PH Panel is installed and ready for snap tracks

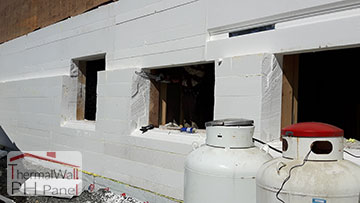

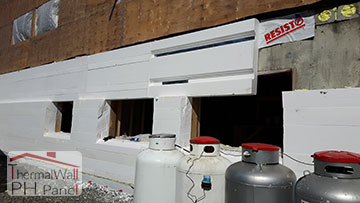

Studs removed for cutting around windows

Install the rest of the screws

Trim openings easily with a chain saw

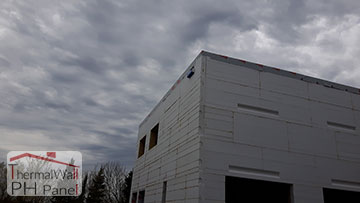

This image illustrates the corner placement of ThermalWall PH panels

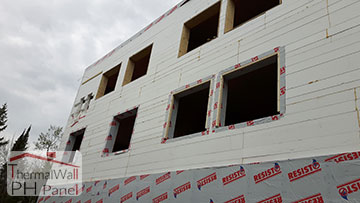

This image illustrates the installation of window flashing and build outs

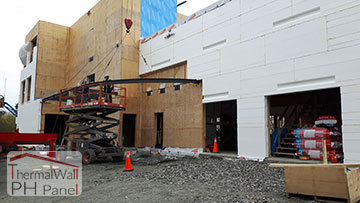

This image displays the Installation of an entry frame for a canopy
Download the Installation Overview PDF

Watch the Installation Overview for ThermalWall PH Super Insulating Wall Panels

Watch ThermalWall PH Super Insulating Wall Panels Installed on a Commercial Passive House Project in Ontario
