With over 40 years experience in designing EPS Concrete Slab Forms, the Legalett team believe they have created the ultimate lightweight, concrete deck forming system, manufactured locally across Canada and the USA for environmental and cost advantages, and with a host of noteworthy speed, strength and cost benefits for concrete deck installers and contractors.

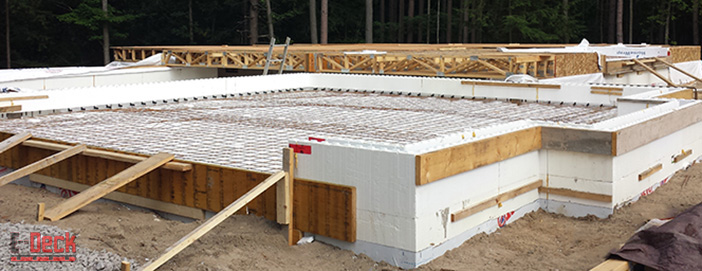

EPS-Deck was developed to create a more efficient and builder friendly way of erecting a suspended Insulated Concrete floor. Manufacturers of these types of floors have been around for 20 and 30 years which gave us the opportunity to see areas where improvement could be made. This helped shape the overall design bringing items such as integrated mesh support track that also seals against concrete bleed water drip and integrated rebar chairs into the finished EPS-Deck product. These time and cost saving features of the EPS-Deck concrete deck forming system set us aside from all other deck forming products and so it was decided to include them with every EPS-Deck form at no additional cost.
Custom spans and custom panels are available. 34’-6” is the maximum for standard residential forms, but longer spans are available as a custom form with custom depths and widths of joists.
Accessory products are also available which include:
The floor panels come in widths of 2’ and 4’ and have a 6” wide beam every 24” o.c. During manufacturing a sturdy 18ga. 3 5/8” steel stud is inserted into the panel. The steel studs are used to help support the floor during concrete placement as well as for furring attachment afterwards.
Integrated steel studs include EPS-Deck’s “Ceiling Lock” which is a built-in tie back to the concrete floor when spans reach 20’ or more. A pre-made slot in the Panel is provided where screws can be installed by the contractor to tie the stud to the concrete’
Panels are custom made from Type 2 EPS to any length and come in any thickness from 6” to 15”.

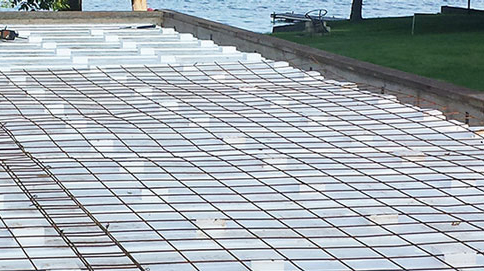

All EPS-Deck insulated EPS concrete floor or roof forms are designed to an exacting specification, strong, secure, with rapid, simple assembly on site. Formed from high quality type 2 expanded polystyrene, with steel or wood support beams doubling as furring attachments, and with integrated mesh support track that also seals against concrete bleed water drip and integrated rebar chairs included in the price. EPS-Deck insulated concrete deck forms can also incorporate PEX/Mesh track for radiant floor heating systems – or for the superior Legalett air radiant heated floor slab system.
The Legalett Product Service and Support Department is staffed by experienced and committed Technical Customer Service Personnel on all aspects of our Frost Protected Shallow Foundations and Air-Heated Radiant Floors.
Should you need technical assistance, warranty, or any other information, please feel free to contact the Legalett professionals.
All Legalett representatives are thoroughly trained in heater operation and application, as well as having hands-on installation experience.
The Legalett staff of trained professionals are available to assist you with any installation or after warranty troubleshooting issue that may arise.
Inquiries pertaining to newly installed systems, operating during warranty periods should be directed to your Legalett Heater Technician or Legalett Installer.
Customers experiencing heater insert problems, after warranty, have the option to:
1) Contact Legalett for a list of qualified technicians in your area
or
2) Contact a local qualified technician
1) Use the information available on this site to troubleshoot the heater insert
or
2) Use the Legalett Phone, Fax or Email Support listed below
or
3) Send heater insert to Legalett for servicing (See the Procedures for Shipping Heater Inserts here)
In all cases when contacting Legalett, Please have
1) Heater Insert model #
and
2) Product data sheet in hand
Monday – Friday 9 am – 5 pm (Eastern Time Zone)
Phone Support: 1-866-299-7567 – extension # 225
Fax Support: 1-613-937-0125
Email Support: tech @ legalett.ca
Or Write to :
Legalett Inc.
Service & Support
5715 Warner Drive
Long Sault, ON
K0C 1P0
